1.3 Inch 240x240 IPS LCD Full Colour Display Module with Dual Interface Options

This compact 1.3-inch display module is engineered for developers, makers, and electronics enthusiasts requiring a reliable and vivid visual output for their projects. Featuring a high-definition IPS (In-Plane Switching) colour screen, it provides superior colour reproduction and wider viewing angles compared to standard TFT LCDs, making it suitable for applications where image quality and visibility from different angles are important. With a square 240x240 pixel resolution and a practical physical footprint, this module is designed for integration into embedded systems, instrumentation, handheld devices, and custom DIY electronics where space is at a premium but clarity cannot be compromised.

Features and Construction

This display module combines specific hardware components to deliver its functionality. The core visual performance is driven by its IPS panel and supporting electronics, all contained within a defined physical size.

Material and Build

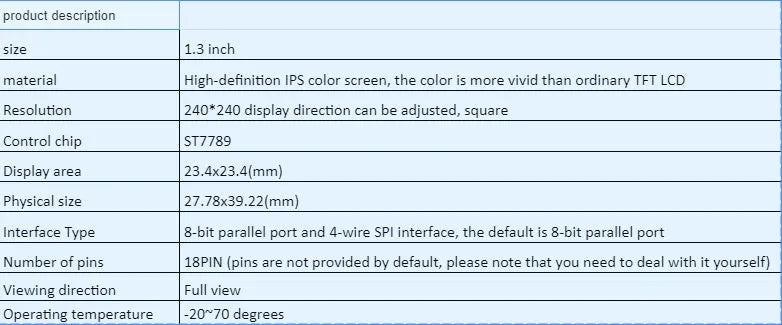

The module is built around a high-definition IPS colour screen, a technology noted in the source for producing more vivid colours than ordinary TFT LCDs. This screen is controlled by an ST7789 driver chip, a common IC for managing small LCDs. The construction focuses on providing the necessary electrical interfaces on a compact board, culminating in an 18-pin connection header. It is important to note that the pins for this header are not supplied, requiring the user to source and fit appropriate connectors for integration into their system.

Size and Practical Fit

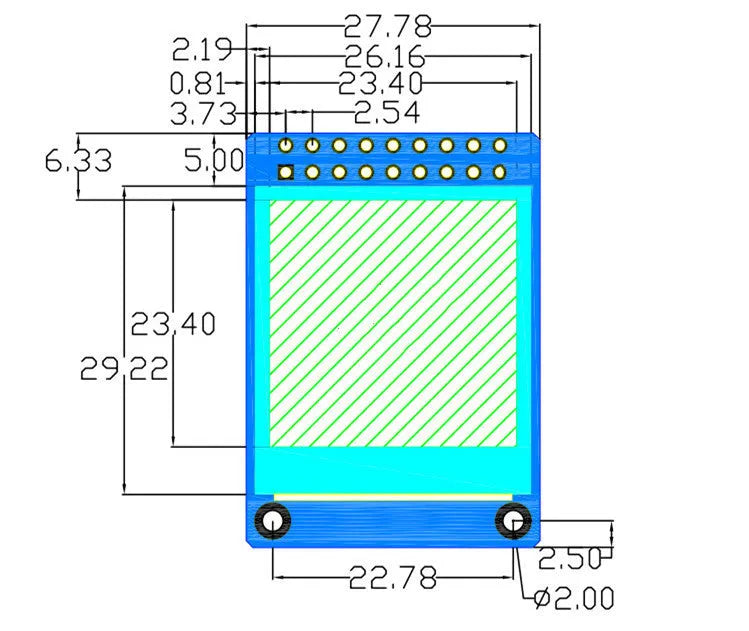

The module's key dimensions are clearly defined. The active display area, where the image appears, measures 23.4mm by 23.4mm, forming a perfect square. The entire module's physical size is 27.78mm in width by 39.22mm in height, defining the board space required for mounting. This compact size makes it a candidate for projects where panel space is limited, such as in custom handheld consoles, compact sensor readouts, or as an auxiliary status display in larger assemblies.

Uses and Placement

The combination of its technical specifications and form factor opens up several application avenues, from professional prototyping to hobbyist creations.

Event or Professional Use

In professional or event settings, this display could be integrated into custom control panels, portable monitoring equipment, or interactive exhibit components. Its full viewing direction (wide viewing angles) ensures information remains visible to multiple viewers or from various positions. The stated operating temperature range of -20 to 70 degrees Celsius supports use in environments beyond typical room temperature, provided the host electronics are similarly rated.

Everyday Home Use

For DIY and home projects, this module is well-suited for building custom smart home interfaces, retro gaming devices, weather stations, or as a display for Raspberry Pi or Arduino projects. The availability of both 8-bit parallel and 4-wire SPI interfaces provides flexibility, allowing makers to choose the interface that best fits their microcontroller's available pins and their project's speed requirements.

Benefits and Buying Value

The value of this display module lies in its specific combination of a quality IPS panel, defined interfaces, and a compact form factor, rather than vague promises.

Reuse and Low Maintenance

As a solid-state electronic component with no moving parts, the display module is designed for reliable operation within its specified parameters. Its low-maintenance nature stems from this electronic design; care primarily involves protecting it from physical damage and electrostatic discharge during handling. The longevity of the product will be influenced by operating conditions, particularly adherence to the temperature limits.

Why Choose This Product

Choosing this product is a decision based on its concrete specifications: the 1.3-inch IPS screen for improved colour and viewing angles, the exact 240x240 resolution on a square canvas, and the dual-interface flexibility for system integration. It offers a defined solution for those who have identified a need for a small, colour display with these specific attributes, avoiding the guesswork that can come with less documented components.
