Handheld Digital Oscilloscope with 40-70 MHz Bandwidth for Automotive Diagnostics

This handheld digital oscilloscope is designed for automotive technicians and electrical engineers requiring portable waveform analysis. With a specified bandwidth of 40-70 MHz and a sampling rate of 250MSa/s, it captures electrical signals relevant to many vehicle systems. The instrument's 10000 wfms/s waveform capture rate supports real-time diagnostics, while its compact form factor, measuring 198 mm by 38 mm by 96 mm, allows for easy use in workshops or on-site. Supplied with essential accessories including an oscilloscope probe, multimeter pen, and adapters, it provides a practical toolkit for fault-finding and signal verification without the bulk of benchtop equipment.

Features and Construction

This section details the core technical specifications and physical build of the handheld oscilloscope, based on the provided product information.

Material and Build

The oscilloscope is constructed as a self-contained digital instrument. The provided dimensions indicate a handheld form factor designed for portability. It incorporates the electronic components necessary for its stated bandwidth and sampling capabilities. The product includes a protective portable bag, which is supplied for storage and transport, suggesting a design consideration for tool durability in mobile working environments.

Size and Practical Fit

The device measures 198 mm in length, 38 mm in width, and 96 mm in height. These compact dimensions facilitate one-handed operation and easy placement alongside other tools. Its size makes it suitable for use in confined spaces, such as a vehicle's engine bay or a crowded workshop bench, where larger equipment would be impractical.

Uses and Placement

The oscilloscope's specifications and included accessories support specific professional and technical applications.

Event or Professional Use

With its 40-70 MHz bandwidth and 10000 wfms/s capture rate, this tool is suited for automotive repair and electronic troubleshooting tasks. The inclusion of a multimeter pen and a BNC-to-crocodile clip adapter expands its utility for basic voltage, continuity, and signal measurement. This makes it relevant for professional technicians diagnosing engine management sensors, ignition systems, or communication bus signals where waveform inspection is needed.

Everyday Home Use

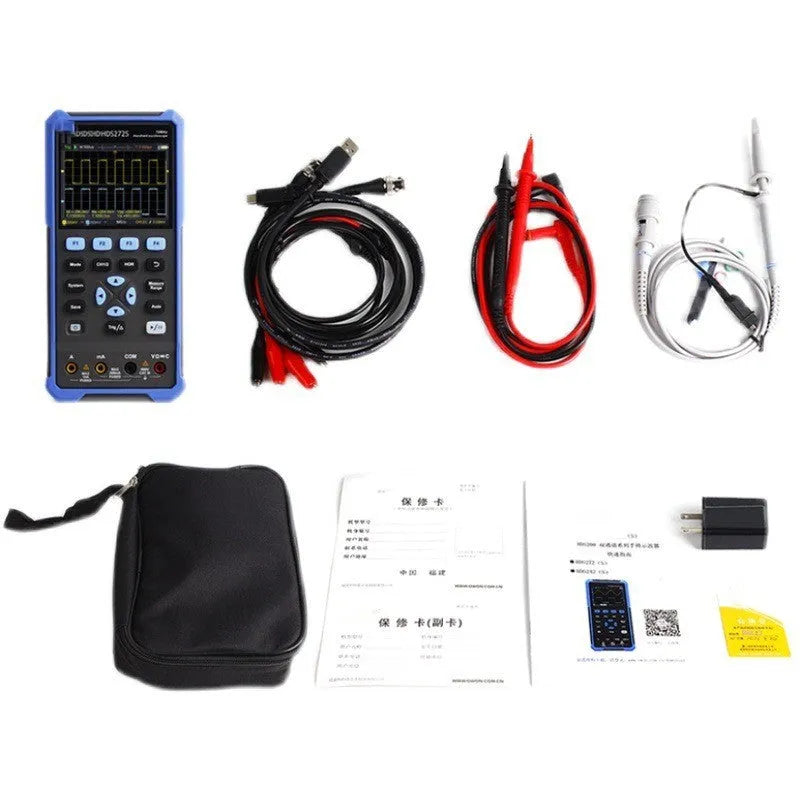

For advanced hobbyists or individuals maintaining older vehicle electronics, the portable nature and complete accessory kit allow for ad-hoc diagnostics. The USB cable enables connection to a computer for potential data transfer or charging, supporting extended use. Its straightforward kit—oscilloscope, probes, adapters, manual—means it can be used directly without sourcing additional parts.

Benefits and Buying Value

The value of this product lies in its integration of multiple test functions into a single, portable unit supplied with necessary accessories.

Reuse and Low Maintenance

The product is supplied as a complete kit, reducing the need for separate purchases of probes or basic adapters. The portable bag aids in keeping all components together and protected between uses, which can help maintain the condition of the probes and the unit itself. The digital nature of the instrument typically requires minimal ongoing maintenance outside of careful handling.

Why Choose This Product

This oscilloscope provides a balance of portability and specified performance for field or workshop diagnostics. The 250MSa/s sampling rate and 40-70 MHz bandwidth offer a practical range for many automotive and general-purpose electronic signals. The key differentiator is the inclusion of a multimeter pen and various adapters, which transforms it from a single-function oscilloscope into a more versatile handheld test instrument, ready for immediate use out of the box.
