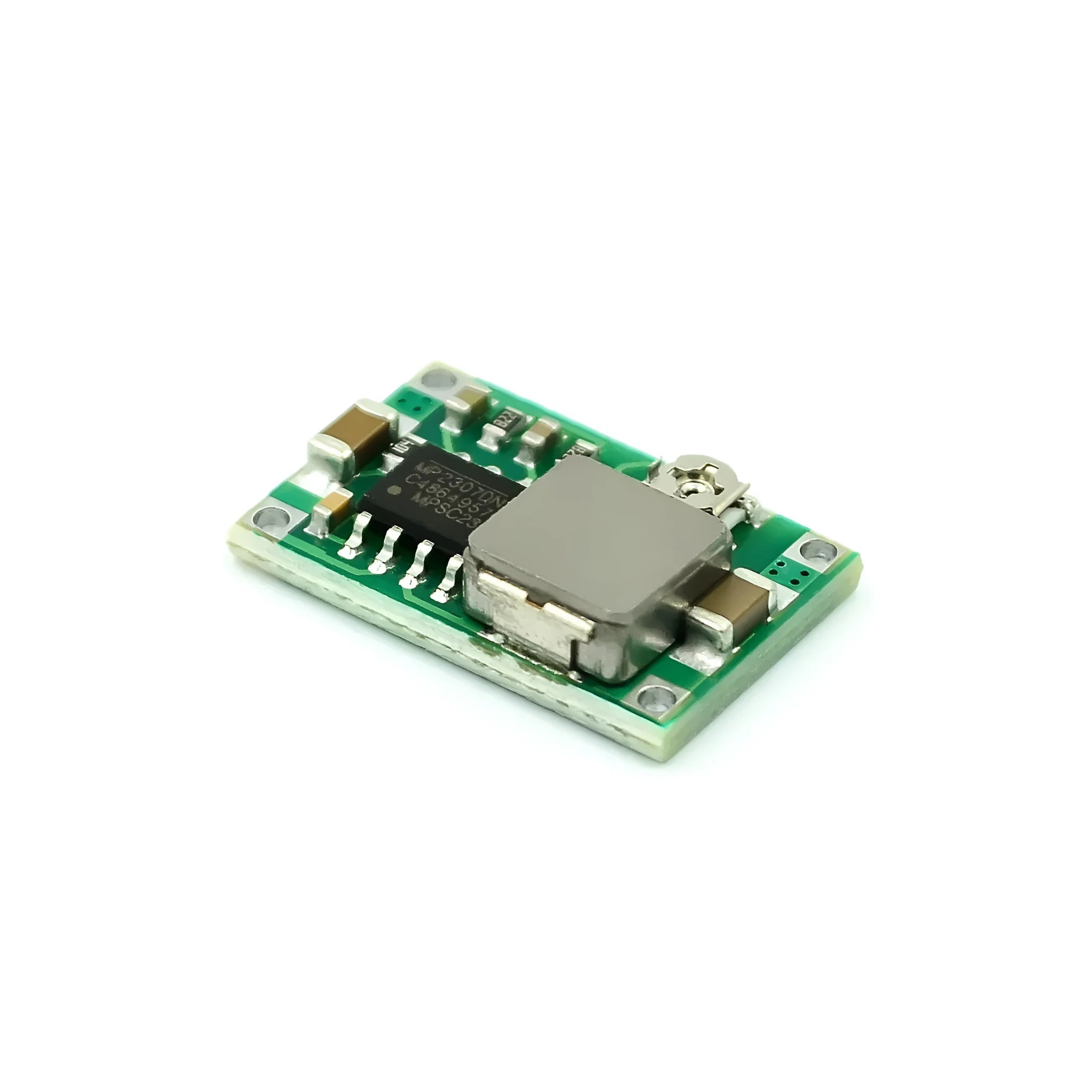

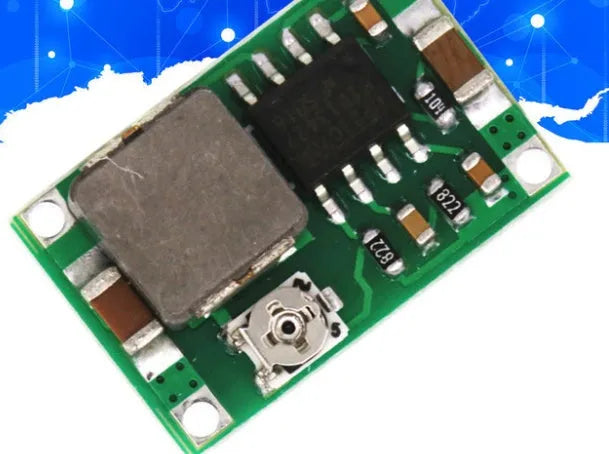

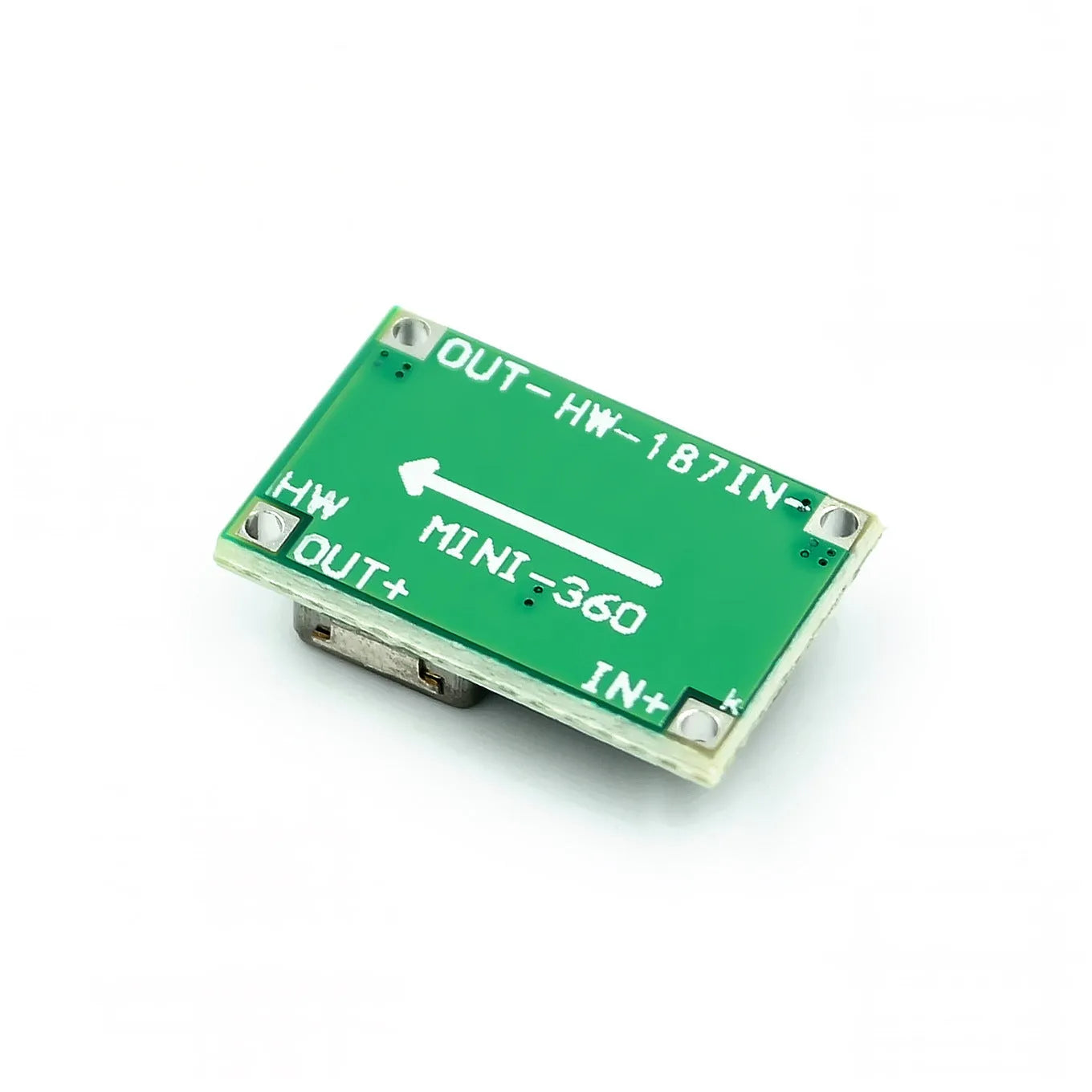

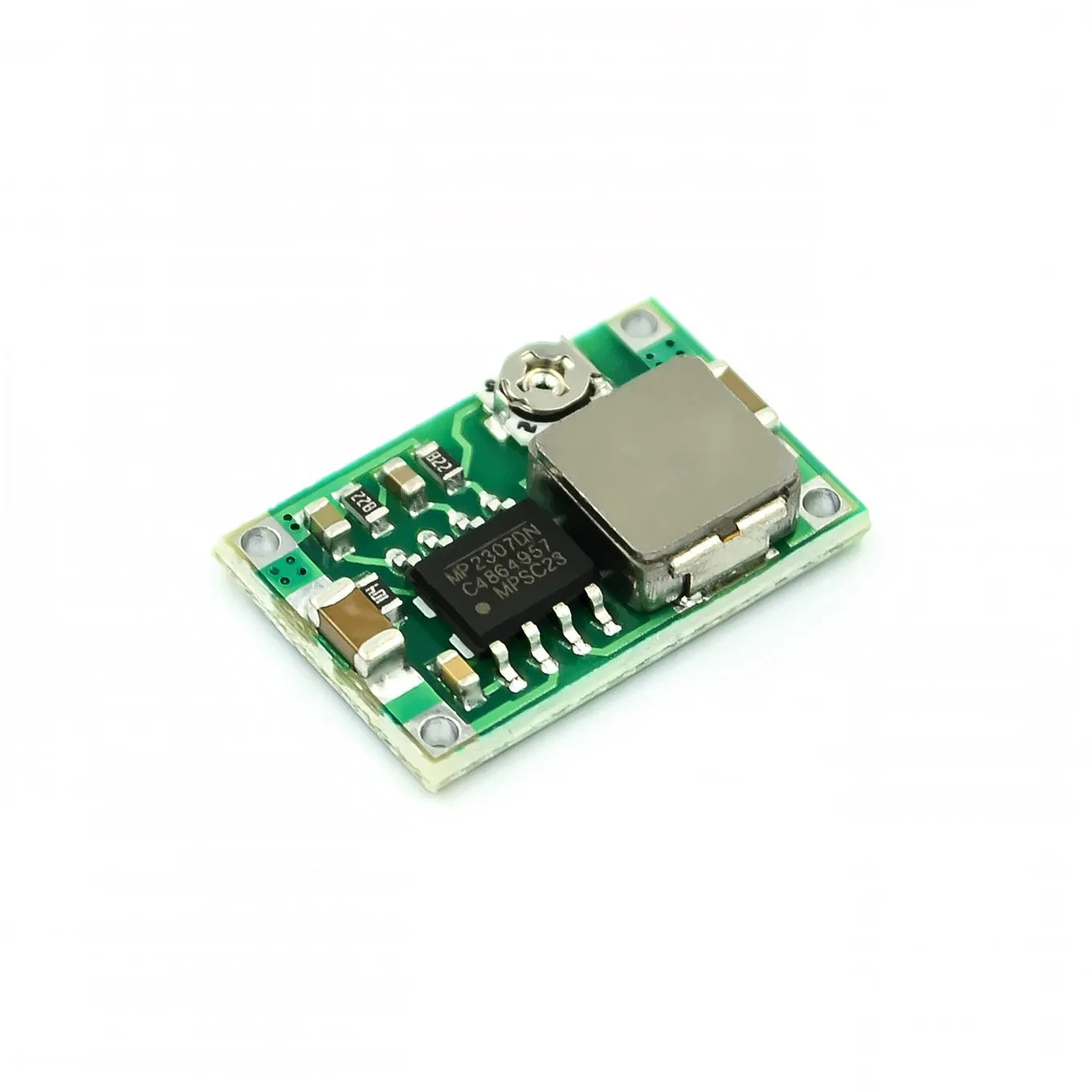

Mini 360 Ultra Compact DC-DC Buck Converter Module with Synchronous Rectification and 96% Efficiency

The Mini 360 represents a significant advancement in compact power conversion technology, packing synchronous rectification buck conversion into a remarkably small 17mm × 11mm footprint. This DC-DC step-down module addresses the growing demand for efficient voltage regulation in space-constrained electronics applications, from portable devices and robotics to compact IoT installations. Its integrally moulded power inductor and synchronous rectifier control chip work together to deliver up to 96% maximum conversion efficiency while minimising the physical dimensions typically associated with such performance. The module's ability to accept 4.75V-23V input voltages and provide adjustable 1.0V-17V output makes it particularly valuable for projects requiring stable, efficient power delivery without the bulk of traditional power supplies.

Technical Specifications and Performance

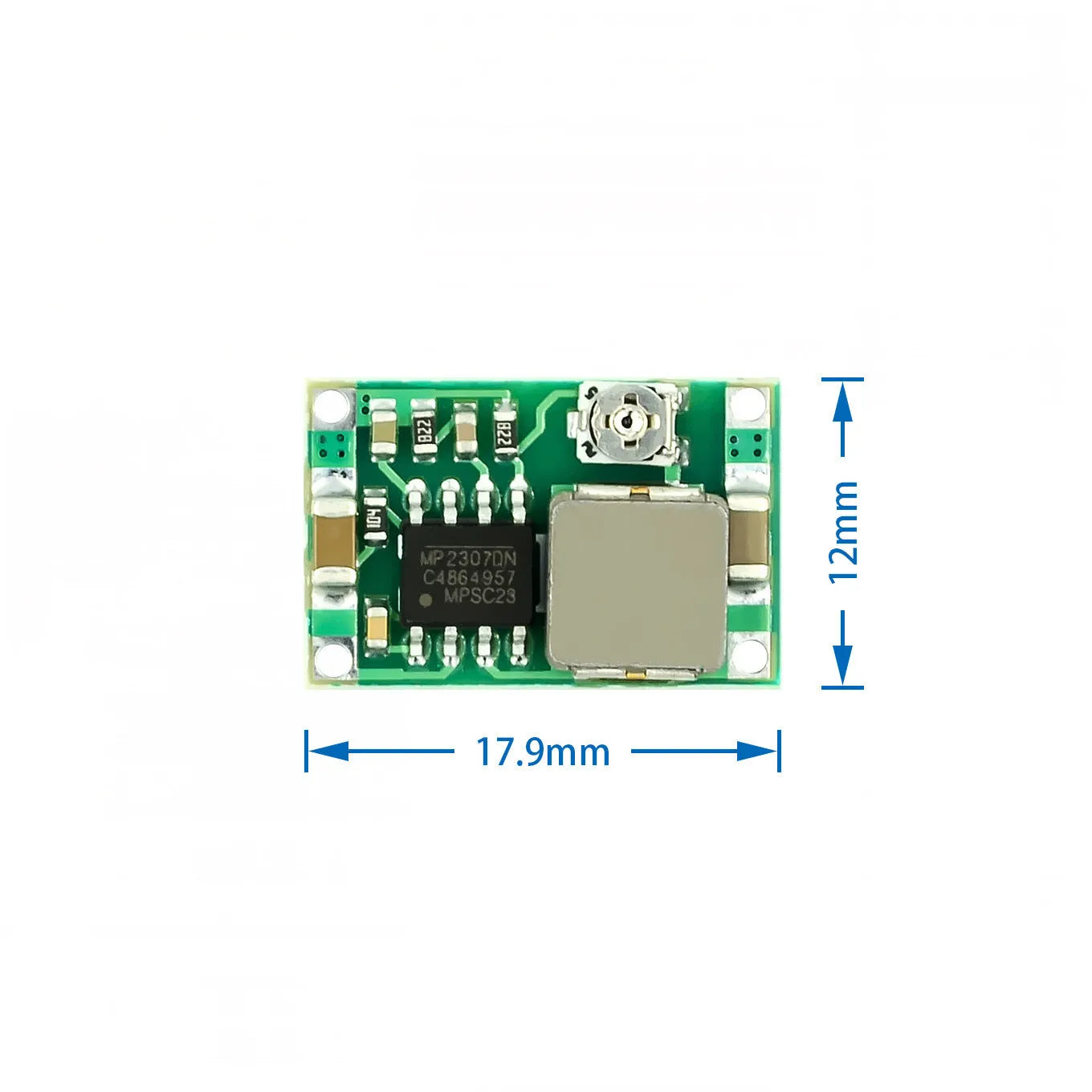

The Mini 360 buck converter's specifications reveal its capabilities across various operating conditions, providing users with predictable performance for electronics projects. With dimensions of just 17mm × 11mm × 3.8mm, it represents one of the most compact solutions available for DC-DC step-down conversion, offering substantial space savings compared to conventional modules. The technical parameters combine to deliver reliable power conversion across diverse applications, from battery-powered devices to regulated power supplies for sensitive electronic components.

Voltage and Current Capabilities

This buck converter accepts a wide 4.75V-23V DC input range, making it compatible with various power sources including 5V USB supplies, 12V automotive systems, and 18-20V laptop adapters. The output voltage is adjustable from 1.0V to 17V, allowing precise voltage matching for specific components or subsystems. Current handling reaches 3A continuous output under normal conditions, though extended operation benefits from limiting current to 1.8A for optimal thermal management. This balance between capability and physical size makes the module particularly suitable for applications where both power delivery and space constraints matter.

Regulation and Efficiency Performance

The Mini 360 maintains ±0.5% load regulation and ±2.5% voltage regulation, ensuring stable output despite variations in input conditions or load demands. Its synchronous rectification technology contributes to the 96% maximum conversion efficiency, significantly reducing energy loss and heat generation compared to traditional diode-based rectification approaches. With 340kHz switching frequency and 30mV no-load output ripple, the module provides clean power suitable for sensitive analog and digital circuits alike, minimising electrical noise that could interfere with system performance.

Environmental Operating Range

Designed for reliable operation across challenging conditions, the Mini 360 functions from -40°C to +85°C, accommodating both industrial applications and outdoor installations where temperature extremes occur. This wide thermal operating range, combined with the module's compact dimensions and efficient design, makes it suitable for embedded systems, automotive electronics, and remote monitoring equipment where environmental resilience matters alongside power conversion efficiency.

Construction and Technical Design

The Mini 360's physical design centres on integration and efficiency, combining multiple components into a unified package that maximises performance while minimising occupied space. Its construction represents contemporary power electronics engineering principles applied to miniature form factors, delivering capabilities that previously required substantially larger modules. The design choices reflect an understanding of modern electronics project requirements where component density and power efficiency increasingly determine project feasibility.

Integrated Power Inductor Design

At the heart of the Mini 360's compact design lies its integrally moulded power inductor, which provides the magnetic energy storage necessary for buck converter operation without the bulk of discrete inductor components. This integrated approach reduces parasitic elements that can affect switching performance while improving thermal characteristics through better heat distribution. The moulded construction enhances mechanical robustness compared to wire-wound alternatives, particularly valuable in applications subject to vibration or mechanical stress.

Synchronous Rectification Implementation

The module employs synchronous rectification using an integrated control chip that replaces conventional diodes with actively controlled MOSFET switches. This approach significantly reduces forward voltage drop during the rectification phase, directly contributing to the module's high efficiency rating. The synchronous rectifier control chip manages switching timing with precision, optimising efficiency across varying load conditions while maintaining stable operation. This implementation represents a substantial advancement over basic buck converter designs, particularly in miniature form factors where efficiency directly impacts thermal performance.

Compact Thermal Management

Despite its small dimensions, the Mini 360 incorporates design elements that support effective thermal management during operation. The synchronous rectification approach inherently generates less heat than diode-based alternatives, while the integrally moulded inductor distributes thermal loads across its structure. The module's 17mm × 11mm footprint provides adequate surface area for passive cooling in most applications, though users should consider additional ventilation for continuous operation near maximum current ratings. This balanced approach to thermal design enables the module's impressive current capabilities relative to its physical size.

Applications and Practical Usage

The Mini 360 buck converter finds application across numerous electronics domains where efficient, compact voltage conversion provides practical benefits. Its combination of small size, adjustable output, and efficient operation makes it particularly valuable for modern electronics projects where space utilisation and power efficiency directly impact design success. From hobbyist creations to professional prototypes, the module delivers performance characteristics that support innovative approaches to power delivery in constrained environments.

Portable and Battery-Powered Devices

For portable electronics, robotics, and battery-operated equipment, the Mini 360's efficient conversion extends operating time by minimising power loss during voltage regulation. Its ability to step down various battery voltages to levels appropriate for microcontrollers, sensors, and other electronics makes it ideal for portable applications where every milliampere-hour matters. The module's low quiescent current and high efficiency across varying loads help maximise battery life in portable designs, while its compact dimensions facilitate integration into space-constrained enclosures.

Embedded Systems and IoT Applications

In embedded systems and Internet of Things devices, the Mini 360 provides reliable power conditioning for sensitive components while occupying minimal PCB real estate. Its stable output voltage with low ripple ensures reliable operation of analog sensors and precision measurement circuits, while the wide input voltage range accommodates various power supply scenarios common in embedded applications. The module's -40°C to +85°C operating temperature range supports deployment in challenging environments, from industrial monitoring to outdoor installations where temperature fluctuations occur.

Educational and Development Projects

For electronics education and prototyping, the Mini 360 offers a practical demonstration of synchronous buck converter principles in an accessible, usable form. Students and developers can experiment with voltage regulation, efficiency measurement, and power supply design using a module that combines theoretical concepts with practical application. The adjustable output voltage enables exploration of power requirements for different components, while the visible construction allows inspection of modern power electronics design techniques in miniature implementation.
