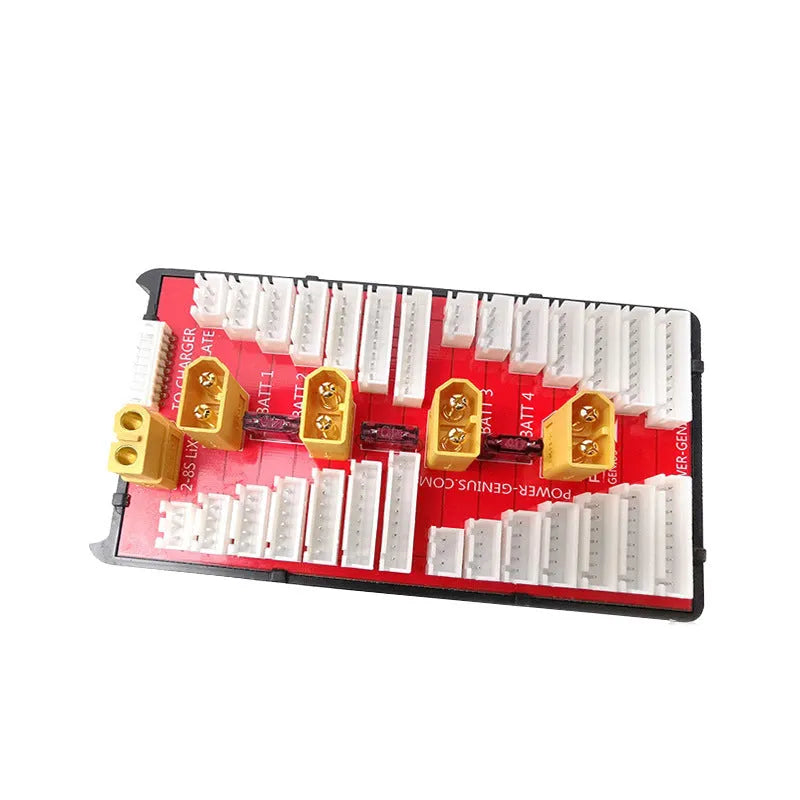

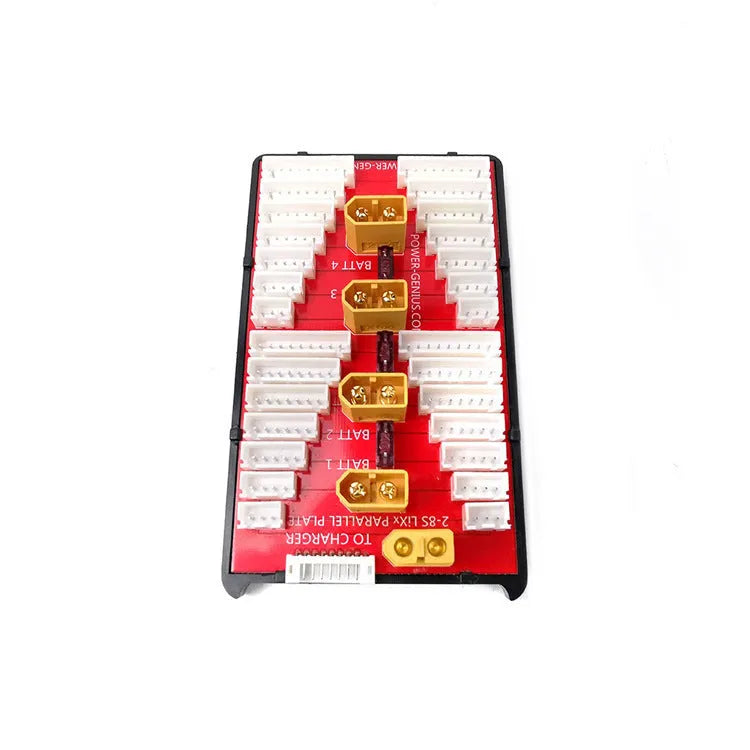

Parallel Charge Board for Simultaneous Charging of 4 Sets of 2-8S RC LiPo Batteries

Managing multiple lithium polymer (LiPo) batteries for radio-controlled vehicles, drones, or other hobbies can be time-consuming, requiring you to monitor and swap out packs on your charger sequentially. This parallel charge board is designed as a practical expansion adapter for your existing balance charger, enabling you to charge up to four battery packs at the same time. It connects batteries of the same cell count in parallel, which consolidates the charging process into a single operation. This method can effectively shorten the total time spent charging multiple packs, as it requires only one balance cycle instead of repeating the cycle for each individual battery. By leveraging parallel charging, capacity adds together while the cell count (S number) remains unchanged, allowing for higher charge currents where supported.

Features and Construction

The board is engineered to provide a reliable and safer interface for parallel charging, incorporating specific design elements to handle the electrical demands and mitigate risks.

Material and Build

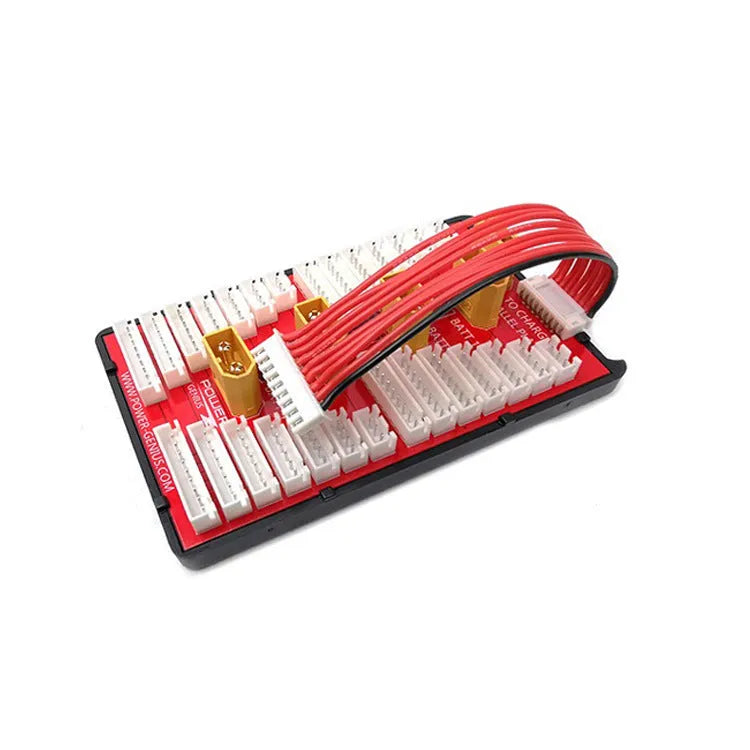

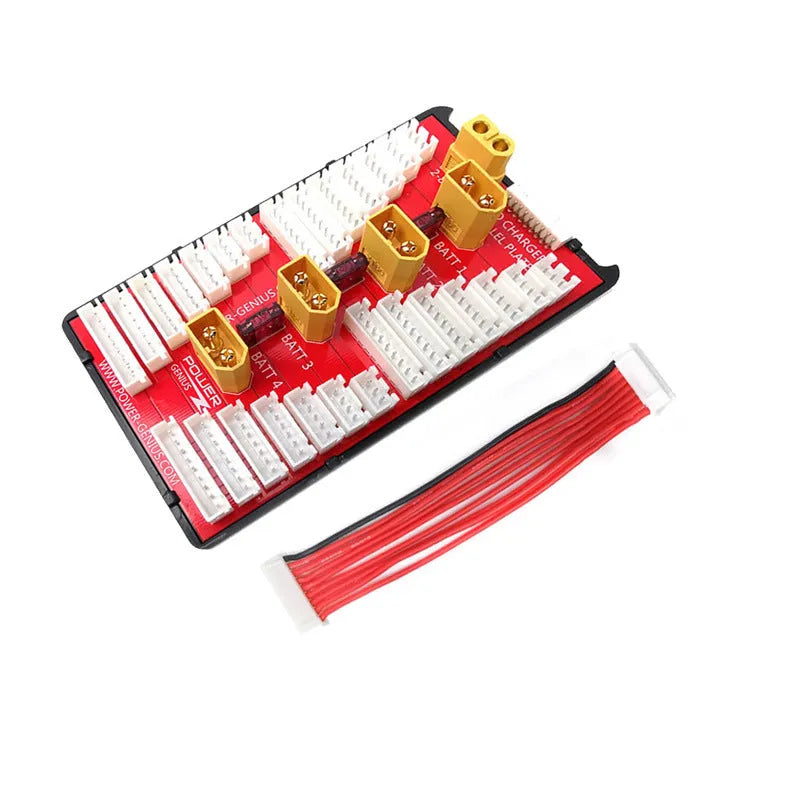

The foundation of the board is a printed circuit board (PCB) utilising a thicker copper foil. This construction is specified to support a continuous charging current of up to 35 amperes, ensuring the board can handle the combined load from multiple connected batteries. Electrical connectivity is provided by high-quality gold-plated connectors, which offer low resistance and reliable contact points over repeated use. The balance port output lines are made from flexible 18AWG multi-strand silicone wire, known for its durability and ease of routing.

Size and Practical Fit

While specific physical dimensions are not provided, the board is designed as a standalone adapter that connects between your batteries and charger. It comes equipped with safety protective silicone caps for the T-plug connectors. These caps are essential for covering unused ports to prevent accidental short circuits caused by metal debris or tools contacting the live terminals, a critical safety practice in any workshop or charging area.

Uses and Placement

This adapter serves a clear function within the workflow of an RC enthusiast or anyone regularly charging multiple LiPo batteries, fitting into both intensive and casual use scenarios.

Event or Professional Use

For competitive racers or professional pilots who cycle through numerous battery packs in a single session, time between runs is precious. This board allows for the rapid recharging of multiple packs simultaneously between heats or flights. Even batteries that do not individually support very high charge rates (high C-number charging) can be charged safely in parallel, as the total current is distributed. This setup can help maintain a ready supply of powered batteries, keeping you on track or in the air with minimal downtime.

Everyday Home Use

For the hobbyist at home, it simplifies battery management after a day of use. Instead of sequentially charging four separate 4S 5000mAh packs, you can connect them all to this board. In parallel, they effectively become a single 4S 20000mAh battery to your charger. If charging at 1C, this would support a 20A charge current. This consolidation turns a multi-hour process into a more efficient single charging session, freeing up your time.

Benefits and Buying Value

The value of this product lies in its time-saving utility and integrated safety measures, offering a straightforward solution to a common logistical task.

Reuse and Low Maintenance

The board is a durable accessory built from robust materials like thick copper PCB and gold-plated contacts, designed for repeated use over time. Its maintenance is minimal, primarily involving the simple safety practice of using the silicone caps and ensuring clean connections. It provides a long-term solution for managing multiple batteries without the need for multiple chargers.

Why Choose This Product

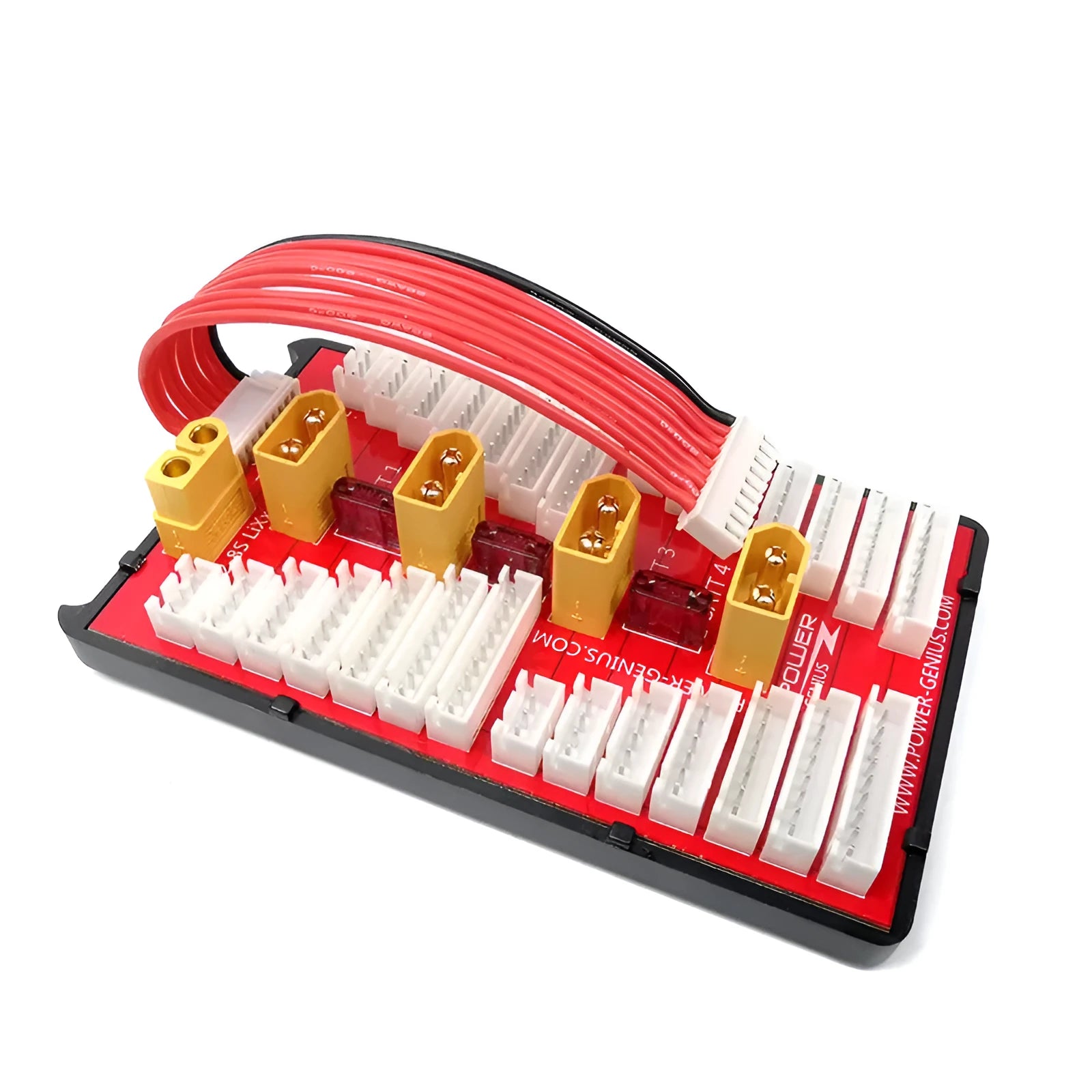

This parallel charge board offers a concrete advantage: it can reduce the active charging time for multiple packs. The source text explains that charging four sets individually requires four separate balance cycles, whereas using this board requires only one. Furthermore, its built-in safety features, like the 40A fuse between battery groups, provide protection against potential issues caused by connecting packs with a significant voltage difference, a key concern in parallel charging. It is a focussed tool that adds capability and efficiency to your existing charging setup.
