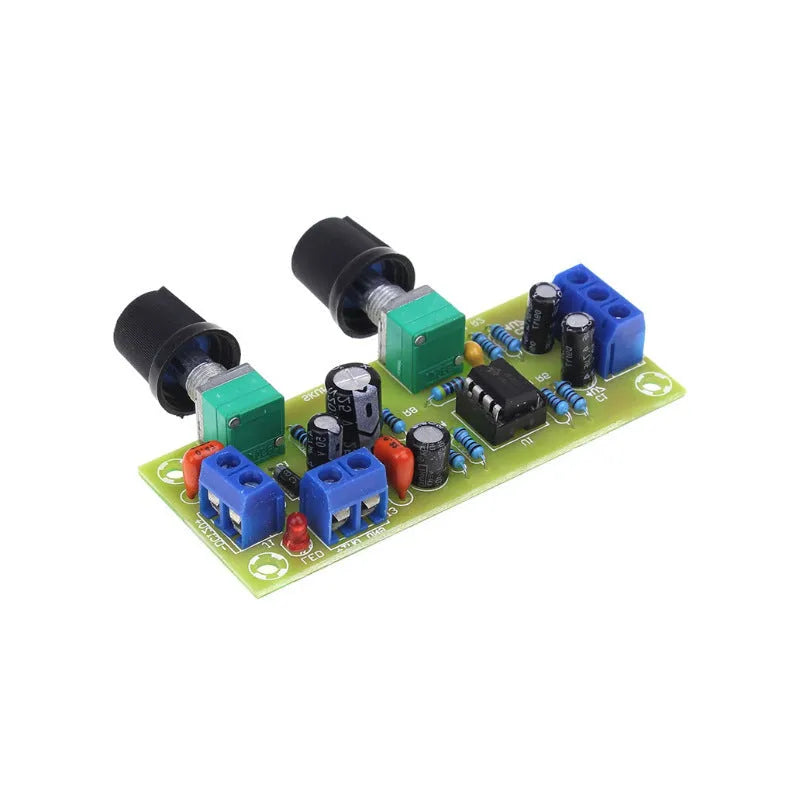

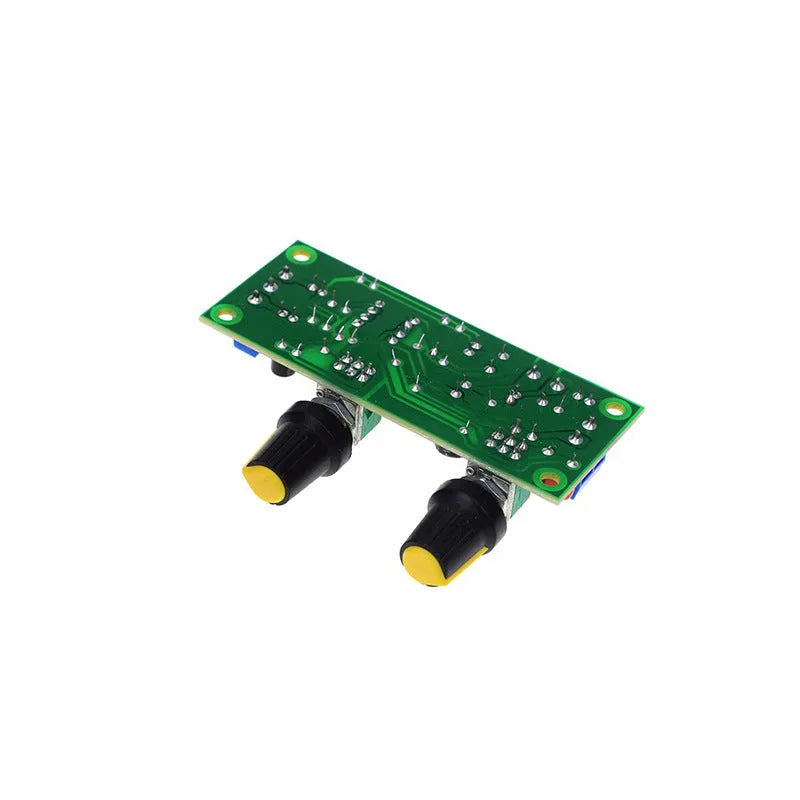

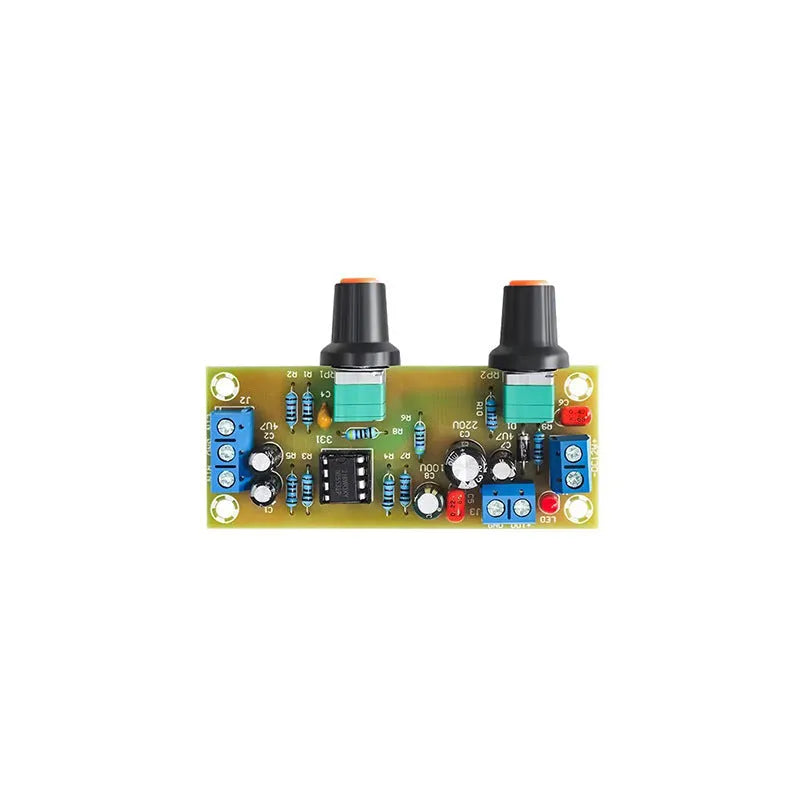

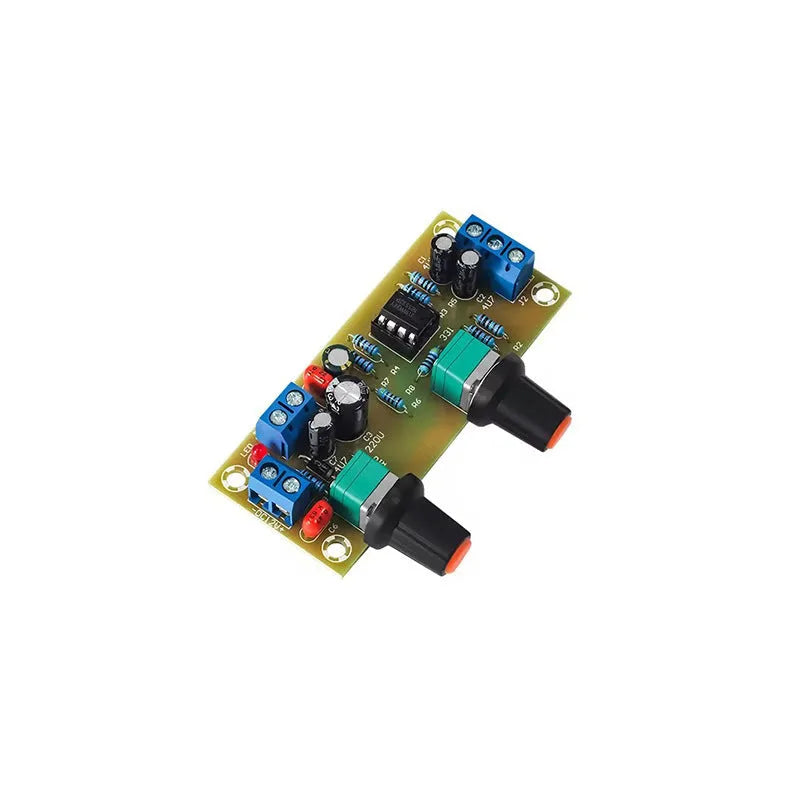

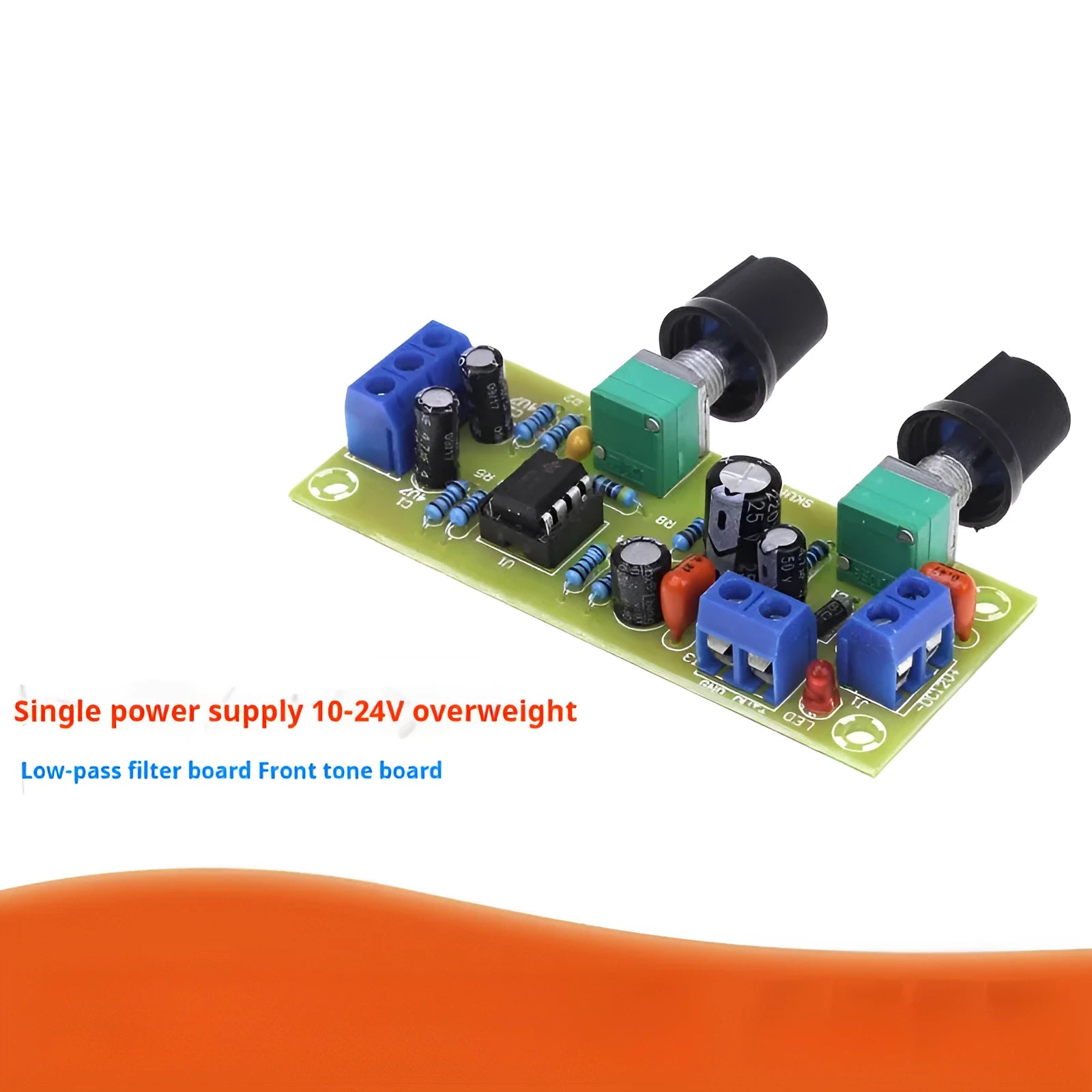

Single Power Supply 10-24V Super Dynamic Bass Boost Front Stage Board for Car Audio Enhancement

This super dynamic bass boost front stage board provides a focused solution for enhancing low-frequency response in vehicle audio systems without the complexity of dual power supplies. Operating on a straightforward 10-24V DC single power input, it processes audio across a dedicated 22Hz-300Hz frequency range to boost bass performance where it's most noticeable in car environments. The compact 78 x 32mm board design integrates into existing audio setups while the FR-4 fibreglass construction offers physical durability for installation in vehicle environments where vibration and temperature variations occur.

Features and Construction

This audio processing board combines practical electrical specifications with physical design elements that facilitate installation in vehicle audio systems. The single power supply requirement simplifies wiring while the frequency targeting addresses specific audio enhancement needs common in car audio applications.

Material and Build

The board utilises super hardness FR-4 fibreglass as its base material, providing the structural integrity needed for mounting in vehicle environments where vibration resistance matters. This material choice supports the board's 1.6mm thickness, creating a balance between physical durability and practical mounting flexibility. The FR-4 construction also contributes to the board's 30g net weight, keeping overall mass minimal for installation in various positions within a vehicle's audio system layout.

Size and Practical Fit

With dimensions of 78 x 32mm, this front stage board offers a compact footprint that integrates into existing audio system configurations without requiring extensive modification. The plate fixing holes feature 70 x 24mm centre spacing with 3.2mm diameter holes, accommodating standard mounting hardware for secure installation. Additionally, the potentiometer shaft centres maintain 32.5mm spacing, ensuring compatibility with common audio component layouts and allowing straightforward integration with adjustment controls.

Uses and Placement

This bass boost board serves specific functions within audio system enhancement, particularly in vehicle environments where low-frequency response often requires additional processing. Its design parameters address common installation scenarios while providing flexibility for various audio setup approaches.

Event or Professional Use

For professional audio installations or event sound systems requiring enhanced bass response, this board provides targeted frequency processing across the 22Hz-300Hz range. The single power supply requirement from 10-24V DC allows integration with various power sources commonly available in mobile audio setups, from vehicle electrical systems to portable power solutions. The mono output configuration ensures consistent signal delivery to amplification stages, while the acceptance of both mono and dual channel input provides flexibility for different source equipment configurations.

Everyday Home Use

While primarily designed for vehicle applications, this audio processing board can enhance bass response in home audio systems where dedicated low-frequency processing is desired. The 10-24V DC power requirement allows connection to standard power adapters, while the compact 78 x 32mm size facilitates integration into existing audio equipment enclosures. The board's ability to accept multiple input types provides compatibility with various audio sources commonly found in home entertainment setups, from media players to television audio outputs.

Benefits and Buying Value

This front stage board offers specific advantages for audio enthusiasts seeking targeted enhancement without system complexity. Its design focuses on practical implementation while maintaining performance parameters that address common audio enhancement requirements.

Reuse and Low Maintenance

The board's construction using FR-4 fibreglass material contributes to long-term reliability in audio system applications, resisting the physical stresses that can occur in installed environments. The single power supply design reduces potential failure points compared to dual power implementations, while the straightforward input/output configuration minimises setup complexity. With no moving parts and solid-state construction, the board requires minimal maintenance once properly installed and configured for specific audio enhancement needs.

Why Choose This Product

This bass boost front stage board provides a focused solution for audio enthusiasts seeking enhanced low-frequency response without extensive system modification. The 22Hz-300Hz frequency range specifically targets bass enhancement applications, while the single 10-24V DC power supply requirement simplifies integration into existing electrical systems. The compact 78 x 32mm size with strategic mounting hole placement facilitates installation in various audio system configurations, making it a practical addition for both vehicle and stationary audio enhancement projects where dedicated bass processing is desired.
