35mm Hinge Punch Locator Tool with Adjustable Margin for Cabinet and Wardrobe Installation

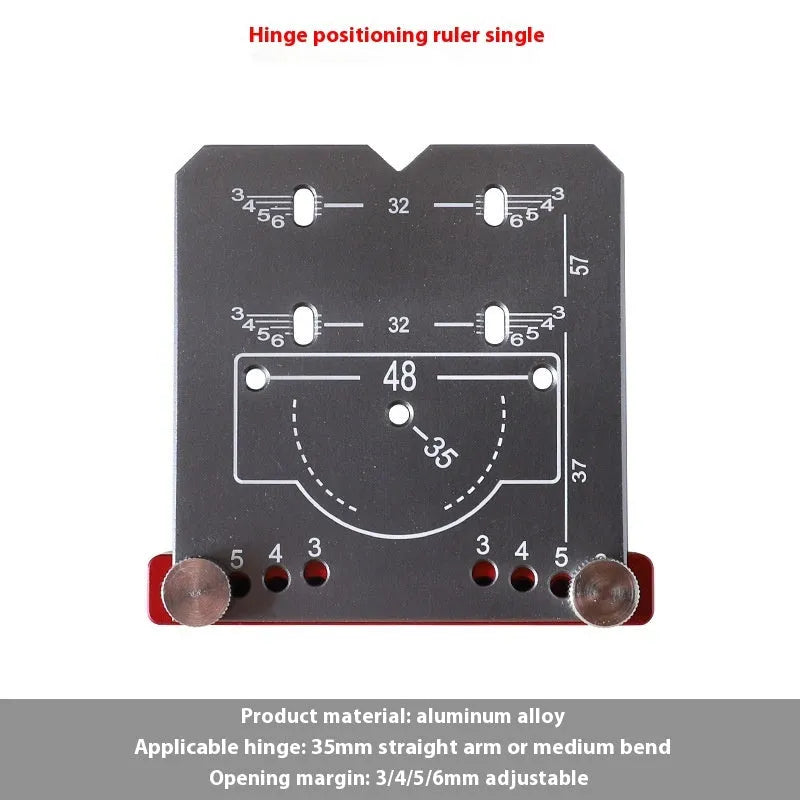

Installing cabinet hinges accurately is a fundamental task in woodworking and home improvement that directly affects door alignment and function. This specialised hinge punch locator tool is designed to address the common challenge of positioning 35mm extended arm or middle bend hinge cups precisely on doors. By offering an adjustable opening margin, it provides a reliable, repeatable method for marking drill points, moving away from manual measuring which can lead to inconsistencies. The tool's construction combines an aluminium alloy ruler with a hard alloy tapper blade, creating a dedicated solution for household cabinet, wardrobe, and built-in unit projects where correct hinge placement is essential for a smooth, professional result.

Features and Construction

This tool's design focuses on delivering a specific, measurable advantage in hinge installation. Its core functionality is built around providing a fixed, accurate reference point, which is critical when multiple hinges must be installed identically across several doors. The construction utilises materials selected for their suitability to the task, avoiding unnecessary complexity for a tool intended for practical, direct application in a workshop or home DIY environment.

Material and Build

The main body of the tool is a locating ruler fabricated from aluminium alloy. This material choice offers a balance of low weight and sufficient rigidity to maintain its shape during use, ensuring the margin settings remain accurate. The integral limit tapper is a separate component made from a hard alloy blade. This blade has undergone a specific manufacturing process involving high-temperature heat treatment, a technique applied to enhance the metal's inherent hardness. The resulting sharp cutting edge is consequently geared towards wear resistance, allowing it to perform its marking function effectively through repeated use on various wood types commonly used in cabinetry.

Size and Practical Fit

The tool's primary specification is its compatibility with standard 35mm diameter hinge cups, commonly found on extended arm and middle bend hinges used for cabinet doors and wardrobes. Its key operational feature is the adjustable opening margin, which can be set to 3mm, 4mm, 5mm, or 6mm. This adjustability is the main differentiator, allowing the user to select the precise setback from the door edge required by their specific hinge type or design preference. This one tool therefore covers a range of standard installation scenarios, replacing the need for multiple fixed-size jigs and increasing its utility for various projects around the home.

Uses and Placement

The application of this locator is centred on woodworking tasks involving framed or frameless cabinet construction. Its value is realised in situations where accuracy and repeatability are paramount, and where even minor errors in hinge placement can lead to doors that bind, sag, or fail to close properly. By providing a physical guide, it translates design measurements into actionable drill points with minimal room for error.

Event or Professional Use

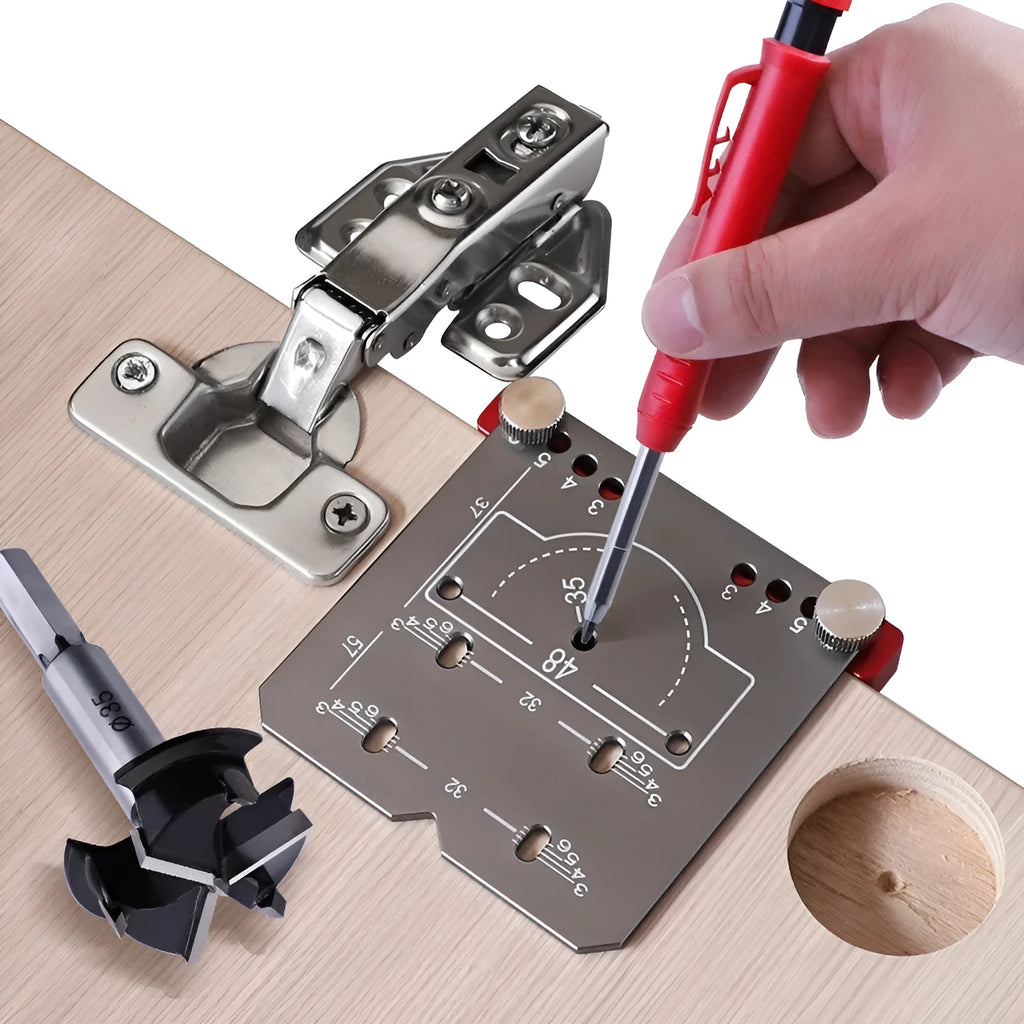

For tradespeople such as carpenters, kitchen fitters, or furniture makers, speed and consistency are crucial. This tool enables the rapid, accurate layout of multiple hinge positions across a bank of cabinet doors, ensuring every unit is identical. The hard alloy tapper creates a clean starter point for drill bits, reducing bit wander and ensuring holes are drilled exactly where intended. This consistency is a professional hallmark and helps maintain high standards on commercial installation jobs or bespoke furniture commissions where client expectations are precise.

Everyday Home Use

For the DIY enthusiast undertaking projects like fitting a new kitchen, building wardrobe cupboards, or assembling flat-pack furniture that requires hinge drilling, this tool demystifies a critical step. It removes the anxiety associated with measuring and marking hinge positions freehand. A home user can confidently achieve a factory-fitted look on their cabinets, ensuring doors open smoothly and align correctly with neighbouring units. It is particularly useful for renovation projects where existing hinge holes need to be replicated or for installing new hinges on refurbished doors.

Benefits and Buying Value

The decision to use a dedicated locating tool over improvised methods brings several tangible benefits that contribute to the overall value of a project. These benefits are rooted in improved outcomes, reduced waste from errors, and the satisfaction of completing a task to a high standard. The tool's design promotes efficiency and accuracy, which are valuable in both time and material savings.

Reuse and Low Maintenance

As a metal-bodied tool with a hardened alloy blade, it is built for reuse across multiple projects. Unlike disposable templates or paper guides, it is a permanent addition to a toolkit. Its maintenance is straightforward; it requires only to be kept clean and stored safely to protect its edges. The wear-resistant property of the treated tapper blade means it should retain its effectiveness over time, providing long-term value from a single purchase. There are no complex parts to replace or batteries required, making it a reliable, always-ready aid for future cabinetry work.

Why Choose This Product

This hinge punch locator stands out for its focused functionality and adjustable design. The ability to switch between four precise margin settings (3mm, 4mm, 5mm, and 6mm) with a single tool covers the majority of common hinge installation requirements, offering flexibility that fixed jigs cannot. The combination of an aluminium alloy frame and a heat-treated hard alloy blade indicates a construction aimed at practical durability for its intended task. For anyone regularly working with 35mm hinges, this tool represents a targeted investment in achieving better, faster, and more reliable results than can be attained with a tape measure, pencil, and guesswork alone.
